The obvious benefit is cost. A used OEM transmission generally costs less than a new one from a dealer, and the gap is large enough on a Wrangler that many owners can keep a Jeep on the road that would otherwise be sold or scrapped. That is especially true for older TJs and YJs, where a new unit may not be offered at all.
Availability is the second reason. The AX-15 and NV3550 are no longer built for Jeep, and a used unit is often the most direct route to a like-for-like replacement. When a Wrangler has a known, well-loved transmission, keeping it original preserves how the Jeep drives and avoids the cost of adapting a different unit.
Fit is the third. An OEM transmission comes with the right input spline count, bellhousing, output shaft, and mounting points, so it goes in the way the factory intended. Aftermarket options sometimes need adapters, or force compromises on shifter position and driveline angles.
Then there is timing. A Jeep sitting on a lift is not earning anything for anyone. Because BackToRoad works as both a parts locator and a direct supplier, with some transmissions coming from our own stock and others sourced through our network, we can usually get you an answer quickly. Once the unit is matched, inspected, and rechecked, it ships anywhere in the US or Canada.
Finally, there is the environmental side, which is easy to overlook. A transmission is a heavy piece of machined metal. Using an existing one keeps it out of the scrap pile and avoids the energy it would take to manufacture a replacement.
At BackToRoad, the process is part of the benefit. Each unit is matched by VIN, inspected, and given a second 24-hour check before shipping, and it is backed by a 30-day warranty. If something is not right when it arrives, you have a number to call and a specialist who knows the part.
Jeep Wrangler Used Transmission Buyer’s Guide
Buying a used transmission is a good decision when you know what you are getting. This is how we handle it at BackToRoad, and it is also a reasonable checklist for anyone shopping around.
Start with the VIN
The VIN tells us the engine, the drivetrain, and the original transmission. That removes most of the guesswork. A 2004 Wrangler, for example, might have a 4.0L with the NV3550, a 2.4L with the NV1500, or a 4.0L with the 42RLE automatic. Three Jeeps, one model year, three different transmissions. Every order we take is verified against the VIN before we call it a match.
Know the transmission code
Manual buyers should know the code by name: AX-5, AX-15, NV3550, NV1500, or NSG370 for the TJ and JK years. If you are replacing what came in the Jeep, matching that code is the safest route. If you are planning a swap, such as putting an AX-15 in a TJ that came with something else, talk to a parts specialist first. Bolt patterns can look close and still need brackets or sensors that do not carry over.
Ask why the donor was retired
Every used transmission comes from a donor Jeep, and the story of that donor tells you a lot. A Wrangler pulled after a rear-end collision is a different source than one retired with a high-mileage engine. We work with low-mileage donors and can tell you what we know about the vehicle behind each unit.
Check what is included
Depending on the unit, the shifter tower, bellhousing, clutch hydraulics, and sensors may or may not come along. The AX-15 used in 1997 through 1999 TJs works with an external clutch slave cylinder, for instance, and details like that affect what you will need to reuse. Ask before you order, and our specialists will tell you what is included with the specific unit.
Plan the parts that go with it
A manual transmission swap is the right time to look at the clutch disc, pressure plate, throw-out bearing, pilot bearing, and slave cylinder. Putting a fresh transmission behind a worn clutch is a common way to end up doing the same job twice. On automatics, fresh fluid and a look at the cooler lines and the mounts are worth the extra hour. If you need a transfer case, engine, or other parts for the same Jeep, our used Jeep Wrangler parts page has the full range.
Confirm the warranty and the shipping
Our used transmissions carry a 30-day warranty, and you can read the details on our warranty page. Shipping across the United States and Canada is covered on our shipping and handling page. Read both before you buy from anyone, including us. A used part is only as good as the process and the coverage behind it.
Most Requested Jeep Wrangler Transmissions
These are the used Jeep Wrangler transmissions customers ask us about most. You can look up any of them with the parts locator tool by entering the year, make, model, and part.

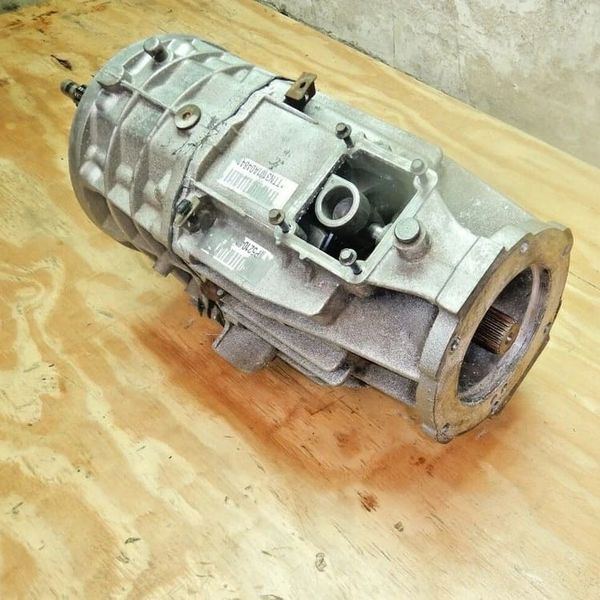

Jeep TJ manual transmission
The Jeep TJ manual transmission is the single most searched item on this page, and for good reason. TJs are popular, they are still widely driven, and their manual gearboxes have had decades to wear. Depending on the year and engine, that means the AX-5, AX-15, NV3550, NV1500, or NSG370. Because the differences matter, we always ask for your VIN before we confirm a used Jeep Wrangler manual transmission for a TJ.
1998 Jeep Wrangler transmission
A 1998 Jeep Wrangler transmission is usually one of two things: the AX-15 five-speed behind the 4.0L six, or the AX-5 behind the 2.5L four. Automatic 1998 TJs use a three-speed TorqueFlite. These early TJs are reaching an age where a rebuilt or used replacement is often the more practical answer than continuing to repair.
2002 Jeep Wrangler transmission
Most 2002 Jeep Wrangler transmission requests are for the NV3550 five-speed, which was used with the 4.0L in the 2000 through 2004 model years. A 2002 with a 2.5L four-cylinder is a different case and uses the lighter-duty AX-5. Automatic 2002 TJs still carry the three-speed TorqueFlite, since the four-speed 42RLE did not arrive until the 2003 model year.
2007 Jeep Wrangler transmission
The 2007 model year was the first for the JK, with the 3.8L V6. A 2007 Jeep Wrangler transmission is either the 42RLE four-speed automatic or the NSG370 six-speed manual. Note that two-wheel-drive and four-wheel-drive units are not the same, so we confirm the drivetrain before we match one.

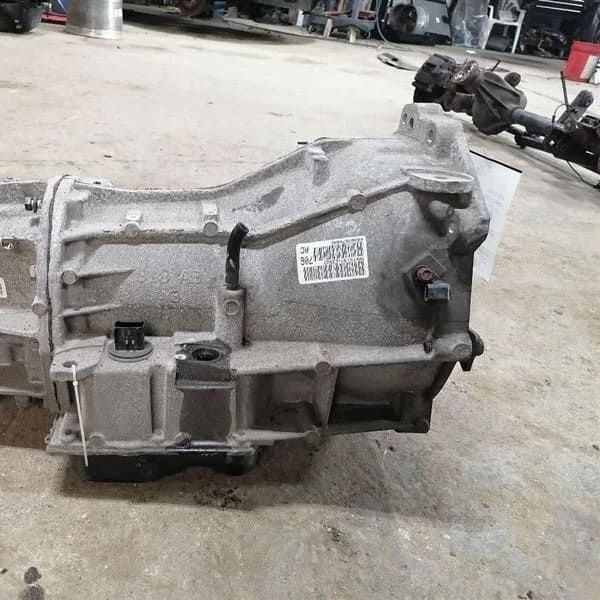

2008 Jeep Wrangler transmission
The 2008 Jeep Wrangler transmission uses the same 3.8L pairings as the 2007, the 42RLE or the NSG370. Owners of manual Jeeps of this era often come to us with an NSG370 that has developed rough shifts or reverse-gear grinding, and a used replacement can be a cost-effective alternative to a rebuild.
2011 Jeep Wrangler transmission
The 2011 Jeep Wrangler transmission is the last of the 3.8L years, and it is worth stating clearly: the 2012 Pentastar-era transmissions are not a direct swap, especially the NSG370 with its different bellhousing. For 2011, the choices are still the 42RLE automatic and the NSG370 manual. Four-wheel drive was standard that year.

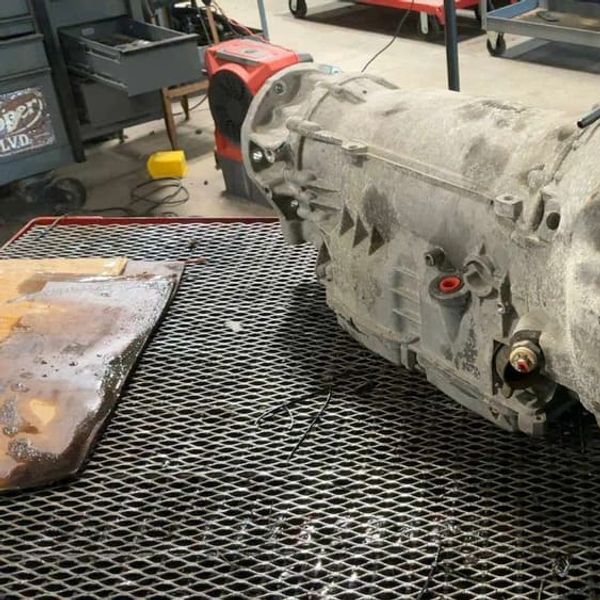

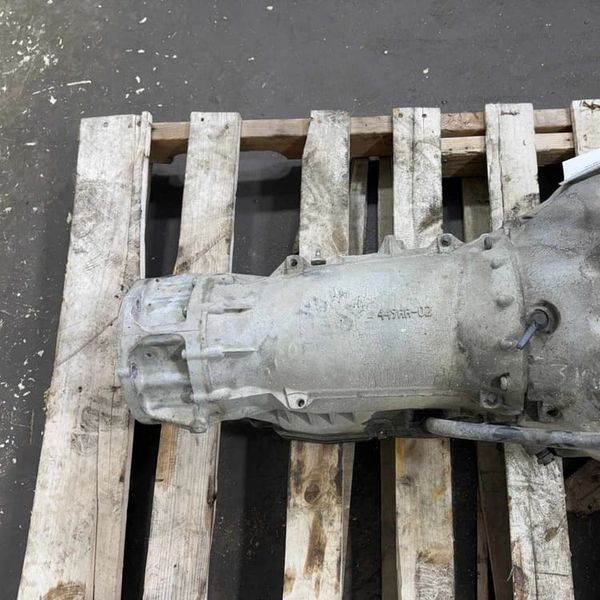

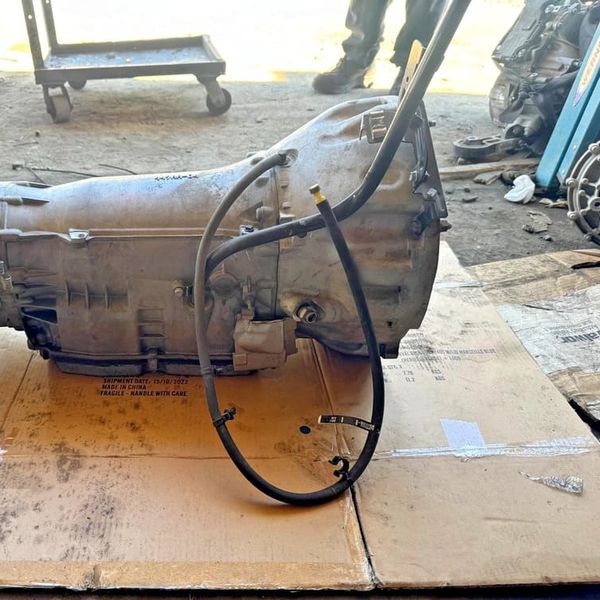

Used Jeep Wrangler automatic transmission
Automatic Wranglers are common, and so are their transmissions on our list. That includes the TorqueFlite 30RH and 32RH on early TJs, the 42RLE on 2003 and later TJs and 2007 through 2011 JKs, the W5A580 on 2012 and newer JKs, and the 850RE on the JL. We match each one by VIN, because engine and transfer case pairings affect fitment.
Jeep Wrangler 6-speed manual transmission
The six-speed NSG370 covers the 2005 and 2006 TJ and the JK, and the Aisin AL6 covers the JL. If you drive a six-speed Wrangler, you know how much of the Jeep’s character comes from that shifter. Replacing one with a properly matched used unit keeps the driving experience the way it was intended.
